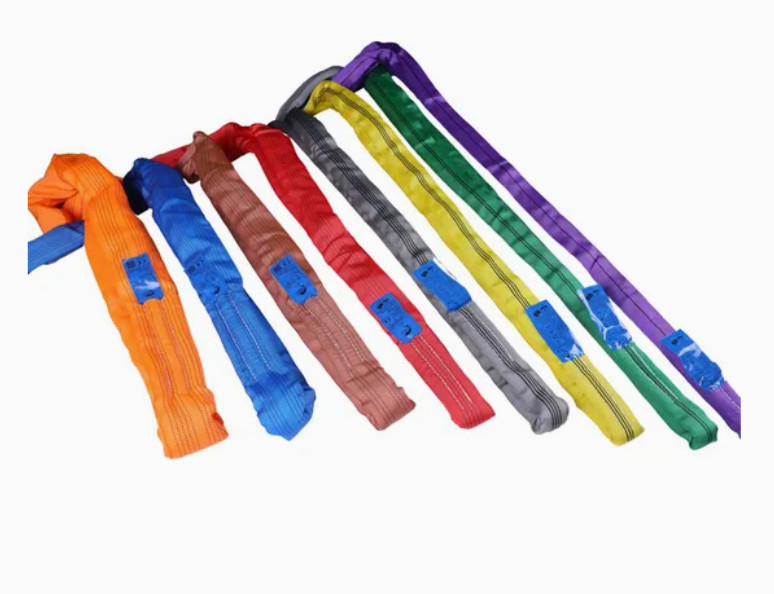

産業用リフティング用高耐久5トンポリエステルラウンドスリング

基本的な特性
原産地: 中国
ブランド名: Anfeng / AF
認証: CE, GS, ISO9001
モデル番号: REE-5T
取引物件
最低注文数量: 100個
価格: Call or Email for quote
支払条件: T/T,L/C
補給能力: 10月1000個
製品概要
Superior Strength & Safety for Demanding Applications Shanghai Anfeng Lifting & Rigging Ltd. manufactures premium 5-ton capacity polyester round slings that set the standard for industrial lifting safety and performance. Our eye-to-eye lifting slings combine advanced materials engineering with rigorous quality control to deliver unmatched reliability in construction, marine, oil & gas, and heavy equipment handling operations. Engineered for Maximum Performance Uncompromising

製品の詳細

ハイライト:

産業用リフティングポリエステルラウンドスリング

,

重用ポリエステル 丸型スリング

,

5トンポリエステルラウンドスリング

Material: 100%ポリエステル
Key Word: 目と目を持ち上げるスリング,ポリエステル丸スリング
Color: 赤色
Standard: JB/T 8521-2007の4497.1-1997としてENの1492-2:2000、
Packaging: カートン+パレット,木製の箱
Usage: 持ち上がること
Length: カスタム
Custom Service: OEM,ODM
製品説明


過酷な用途向けの優れた強度と安全性

Shanghai Anfeng Lifting & Rigging Ltd. は、産業用吊り上げの安全性と性能の基準となる、プレミアム5トン容量のポリエステルラウンドスリングを製造しています。当社のアイ・トゥ・アイ吊り上げスリングは、高度な材料工学と厳格な品質管理を組み合わせ、建設、海洋、石油・ガス、重機取り扱い作業において比類のない信頼性を提供します。

最大限の性能のために設計

妥協のない安全機能

  • 6:1の最小安全率(重要な吊り上げの場合は7:1または8:1にアップグレード可能)

  • 瞬時の負荷容量認識のための色分け識別システム

  • 最小限の伸び(WLLで7%以下)により、危険な負荷のずれを防止

高度な材料技術

  • コア:超高分子量ポリエステル繊維

  • 保護:耐摩耗性の二重編みポリエステルスリーブ

  • 温度範囲:-40℃~+100℃の動作能力

運用上の利点

  • 同等のチェーンスリングより30%軽量

  • 火花のリスクなし - 爆発性環境に最適

  • 非マーリング表面がデリケートな負荷を保護

技術仕様表

モデル WLL (T) 直径 最小長 最大長 破断強度
REE-5T 5 58mm 1.5m 80m ≧30T
REE-6T 6 茶色 61mm 1.6m 80m ≧36T
REE-8T 8 69mm 1.7m 80m ≧48T

認証:EN 1492-2、AS 4497.1、JB/T 8521
安全率:標準6:1(7:1および8:1も利用可能)

業界をリードするメリット

機器管理者向け

  • 優れた耐摩耗性による長寿命

  • 迅速な目視検査機能によるダウンタイムの削減

  • ワイヤーロープやチェーンの代替品と比較して、総コストを削減

オペレーター向け

  • 柔軟で軽量な構造による人間工学に基づいた取り扱い

  • 複数のヒッチ構成(垂直、チョーカー、バスケット)

  • 過酷な産業環境に対応する耐薬品性

グローバルな業界から信頼されています

当社のラウンドスリングは、以下に最適です:

  • オフショアプラットフォームのメンテナンス

  • 発電所のタービン設置

  • 重機の移設

  • 造船およびドライドック作業

なぜShanghai Anfengなのか?

  • 20年以上の吊り上げソリューション専門

  • 独自の用途向けカスタムエンジニアリング

  • 第三者検証を含む完全な認証パッケージ

当社の高性能ポリエステルラウンドスリングで、今日の吊り上げ作業をアップグレードしましょう - 安全性と効率性が融合!

行動喚起:技術仕様と、お客様の運用要件に合わせたカスタム吊り上げソリューションについては、当社のエンジニアリングチームにお問い合わせください。
