商品の詳細:
|
| Safety Factor: | 5:1 | Manufacturer: | Anfeng Lifting & Rigging Ltd. |
|---|---|---|---|
| End Fitting Type: | Open Spelter Socket with cotter pin | Tension Strength: | 1770 MPa |
| Material: | High tensile, quenched and tempered cast steel | Wire Rope Construction: | 6 x 19 + IWRC, 6 x 37 (a) + IWRC, 6 x 61 (a) + IWRC and 8 x 61 (a) + IWRC |
| Product Name: | Galvanized 8mm Wire Rope End Stop Open Spelter Sockets With Cotter Pin SOA-08 | Certifications: | DNV-GL, CCS, ABS and other third-party inspection certificates available upon request |

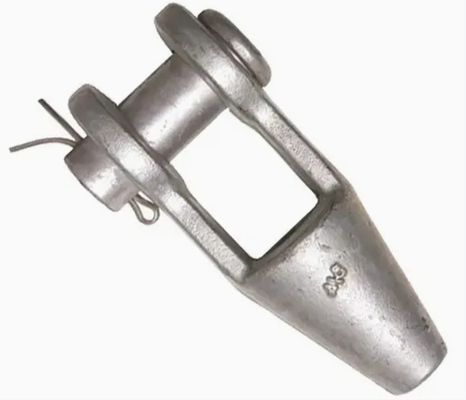

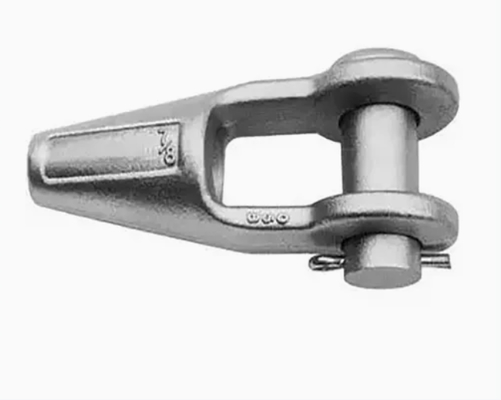

The G416 Galvanized Open Spelter Wire Rope Socket with Cotter Pin is a heavy-duty rigging component designed for secure wire rope terminations in lifting, marine, construction, and industrial applications. Featuring a hot-dip galvanized finish for superior corrosion resistance, this open spelter socket ensures reliable load-bearing performance while the integrated cotter pin provides added safety against accidental dislodgment.
Hot-dip galvanized coating protects against rust, extending service life in harsh environments (marine, construction, etc.).
Resists UV exposure, moisture, and chemical wear.
The open design allows for efficient pouring of molten zinc or resin during splicing, ensuring a tight, secure fit.
Eliminates slippage under heavy loads.
The included cotter pin locks the wire rope in place, preventing accidental release.
Meets OSHA and ANSI safety standards for rigging applications.
Engineered for heavy-duty use with excellent tensile strength.
Compatible with various wire rope diameters (see specifications below).
Ideal for cranes, winches, suspension bridges, and marine rigging.
Suitable for both static and dynamic load-bearing systems.
| Parameter | Details |
|---|---|
| Model | G416 |
| Material | High-grade carbon steel |
| Finish | Hot-dip galvanized |
| Type | Open spelter socket |
| Safety Feature | Cotter pin included |
| Working Load Limit (WLL) | Varies by size (refer to manufacturer’s chart) |
| Compliance | Meets ISO, ANSI, and OSHA standards |
| Common Wire Rope Sizes | 1/4" to 2" (6mm to 50mm) |
Reliable Performance: Tested for maximum safety under extreme loads.
Corrosion-Resistant: Galvanization ensures longevity in wet or corrosive environments.
Easy Inspection: Open design allows for quick visual checks of wire rope condition.
Cost-Effective: Reduces maintenance and replacement costs over time.
Construction: Tower cranes, suspension systems.
Marine: Ship rigging, dock mooring.
Mining & Oil Rigging: Heavy-load lifting applications.
Transportation: Cableway systems, zip lines.
For secure, long-lasting wire rope terminations, the G416 Galvanized Open Spelter Socket with Cotter Pin delivers unmatched strength and safety. Order today for industrial-grade rigging solutions!
