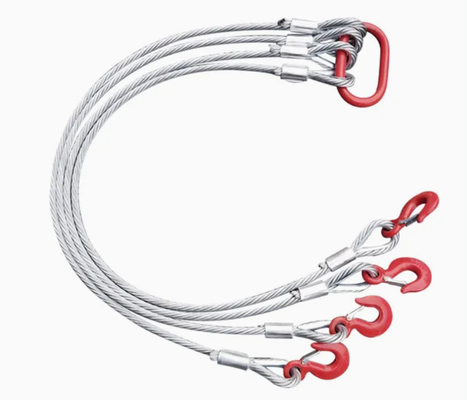

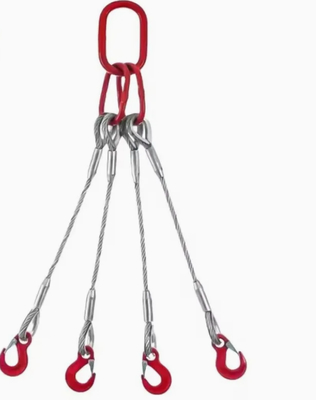

亜鉛メッキ4本脚スチールコア鋼線ロープ吊り具:高耐久性吊り上げ作業における優れた強度と安全性

基本的な特性
原産地: 中国
ブランド名: Anfeng / AF
認証: CE, ISO 9001
モデル番号: CSFFS32
取引物件
最小注文数量: 500 PC
価格: Call or Email for quote
支払条件: T/T、L/C
供給能力: 月額10,000個
製品概要
For industrial and construction professionals in New Zealand, the US, and Europe, demanding applications require lifting solutions that combine ultimate strength with unwavering reliability. Our Galvanized 4 Leg Steel Core Steel Wire Rope Lifting Sling is engineered to meet this challenge head-on. Designed for the most rigorous environments, from port logistics in Auckland to manufacturing floors in Germany and infrastructure projects in North America, this sling sets a new

製品詳細

Length: カスタマイズ
Packing: カートン+パレット、木箱、または習慣
Key Word: フランダースの目の袖が付いているFour-legワイヤー ロープの吊り鎖、ワイヤー ロープおよび指ぬき、鋼鉄中心、吊り鎖アセンブリ
Wire Rope End Fittings: フランダースの目の袖および指ぬき
Safety Factor Of Shackle: 6:1
Safety Factor Of Rigging: 5:1
Material: 鋼鉄中心の電流を通された鋼線ロープ
Product Name: 鉄鋼 48mm 4 Way ワイヤロープ スリング 引き上げ スリング
製品の説明

ニュージーランド,米国,ヨーロッパにおける工業および建設の専門家にとって 要求の高いアプリケーションは 究極の強さと揺るぎない信頼性を組み合わせた リフティングソリューションを必要としますこの課題を正面から迎えるように設計されていますオークランドの港湾物流から ドイツの製造工場まで 北米のインフラプロジェクトまでこのスリングは性能と安全性の新しい基準を設定します.

卓越した製品特性と革新

標準のスリングとは異なり 私たちのデザインは 優れた材料と 建設技術の ユニークな組み合わせを組み込み 40%の性能差を生み出しています

  • 重型鋼筋コア構築:重要な革新は各脚の中央を通る独立した鋼筋コア (IWRC - Independent Wire Rope Core) にあります.このコアは,重い負荷の下で粉砕と変形に例外的な抵抗を提供します繊維コアスリングと比較して構造的整合性を著しく向上させる.

  • 高級熱浸しガルバニゼーション: 我々は,厚い,均質な亜鉛コーティングを提供する徹底的な熱浸しガルバニゼーションプロセスを採用します. これは優れた耐腐蝕性を提供します.硬い天候によって生じる 腐りや劣化から保護する塩水環境 (ニュージーランドの沿岸および海上産業にとって極めて重要です) と化学物質への曝露.

  • 正確なバランスのとれた四脚設計:各脚は,重荷の均等な分布を保証するために,細心の注意を払って校正され,試行錯誤されています.これは,足の長さの不一致をなくし,危険な負荷の転倒を防ぐことができます.安定した機械,プリファブリックモジュール,建設材料などの不快な物や大型物のバランスの取れたリフト.

  • 耐久性のあるスリーブ保護:高品質の鉄鋼または合金スリーブ (フェルル) が極力でスリング眼に押されます.これは専門的なスワージング技術と組み合わせて,安全な,内部のワイヤの疲労を最小限に抑え,従来のクランプフィッティングをはるかに超える使用寿命を延長する恒久的な終了.

業務 に 与える 主要 な 利点

  • 強化された安全性: 鋼筋コアと頑丈な構造により,より高い安全性要因が提供され,災害的な故障のリスクが軽減されます.これはEUとニュージーランドの厳格な安全規制の下で極めて重要です.

  • 寿命が長く, ROIが向上します. 優れた腐食保護と耐磨性により,交換頻度が劇的に減少し,時間の経過とともに所有コストが大幅に低下します.

  • 汎用性:船舶建設,鉱山,重装備輸送,オフショア事業を含む幅広い産業に最適です.クレーンフックに直接接続する.

  • 維持 効率: 振動 塗装 は 維持 費 が 少なく,磨損 の 確認 に は シンプル な 清掃 だけ が 必要 で あり,貴重な 時間 と 資源 が 節約 さ れ ます.

技術パラメータ表



パラメータ 仕様 注記
コアタイプ 独立鋼筋ロープコア (IWRC) 優れた強度と圧迫耐性を備えています
コーティング 熱浸したガルバン化 (HDG) 室外・海洋用には耐腐蝕性があります
4 大量の荷物を平衡的に持ち上げられるように設計されています
容量 1トンから50トン+ ロープの直径と足の長さによって異なります
足の長さ カスタマイズ可能 (例えば,1mから10m) 特定のアプリケーションのニーズに合わせた
基準 AS/NZS 1665,EU EN 13414,OSHA に適合している あなたの地域での使用に認定されています
スリーブ/フィッティング 圧縮された鉄鋼または合金製の鉄筋 安全で高強度な切断です

安全 と 耐久 性 と 効率 を 保証 する スリング を 選ん で ください.
