お待たせしました Shanghai Anfeng Lifting & Rigging LTD.
+86-13802941278

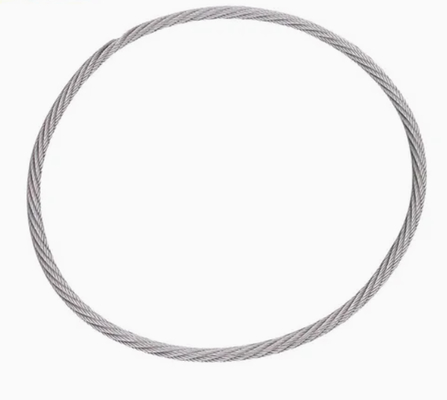

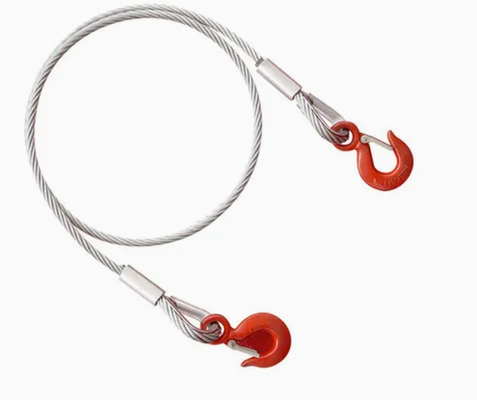

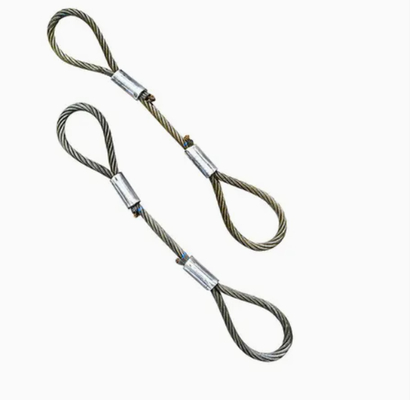

重用 1/2/3/4 脚 振動用電線スリング 持ち上げ 持ち上げ 優れた安全性 耐久性

基本的な特性
原産地: 中国
ブランド名: Anfeng / AF
認証: CE, ISO 9001
モデル番号: CSFFS32
取引物件
最小注文数量: 500 PC
価格: Call or Email for quote
支払条件: T/T、L/C
供給能力: 月額10,000個
製品概要
For industrial, construction, and marine lifting operations in New Zealand, the EU, and the US, demanding the highest standards of safety and reliability, our Heavy-Duty Galvanized Wire Slings are the ultimate solution. Engineered for extreme performance and longevity, these slings are the preferred choice for professionals who refuse to compromise on quality. Unlike standard slings, our product integrates advanced galvanization and precision manufacturing to offer unmatched

製品詳細

Length: カスタマイズ
Packing: カートン+パレット、木箱、または習慣
Key Word: フランダースの目の袖が付いているFour-legワイヤー ロープの吊り鎖、ワイヤー ロープおよび指ぬき、鋼鉄中心、吊り鎖アセンブリ
Wire Rope End Fittings: フランダースの目の袖および指ぬき
Safety Factor Of Shackle: 6:1
Safety Factor Of Rigging: 5:1
Material: 鋼鉄中心の電流を通された鋼線ロープ
Product Name: 鉄鋼 48mm 4 Way ワイヤロープ スリング 引き上げ スリング
製品の説明

ニュージーランド、EU、および米国の産業、建設、海洋における吊り上げ作業において、最高の安全基準と信頼性を求めるなら、当社の高耐久亜鉛メッキワイヤースリングが究極のソリューションです。極限の性能と長寿命のために設計されたこれらのスリングは、品質に妥協を許さない専門家にとって最適な選択肢です。標準的なスリングとは異なり、当社の製品は高度な亜鉛メッキと精密な製造を統合し、比類のない耐食性と強度を提供し、最も過酷な環境下でもプロジェクトがスムーズかつ安全に進むことを保証します。

製品の特徴と優れた利点:

  • プレミアム溶融亜鉛メッキ仕上げ: 当社のスリングは、厳格な溶融亜鉛メッキプロセスを経ています。これにより、錆や腐食に対する優れた保護を提供する厚く頑丈な亜鉛コーティングが施されます。これは、ニュージーランドの沿岸作業、ヨーロッパの海洋用途、または化学物質や過酷な天候にさらされる業界にとって重要な利点であり、劣悪なコーティングと比較してスリングの耐用年数を40%以上延長します。

  • 妥協のない安全性と長持ちする耐久性: 高張力鋼線ロープで構成され、耐久性のある鍛造合金鋼のマスターリンクと継手が取り付けられており、各スリングは業界の安全基準(ASME B30.9、EN13414)を超えるように設計されています。コア強度は、内部応力を最小限に抑える独自の製造プロセスを通じて強化され、摩耗や疲労を軽減し、毎回より安全で信頼性の高い吊り上げを実現します。

  • あらゆるタスクに対応する多用途な構成: 1、2、3、4本足の構成で、調整可能なコンポーネントが利用可能であり、当社のスリングは比類のない柔軟性を提供します。これにより、機械や建設資材から大型の産業用モジュールまで、さまざまな形状とサイズの荷物の完璧なバランスと安全な吊り上げが可能になります。

  • 人間工学に基づいた使いやすい設計: 当社は使いやすさに重点を置いています。当社のスリングは、明確にマークされた使いやすいフックとリンクを備えており、セットアップ時間を短縮し、ユーザーエラーのリスクを最小限に抑えます。亜鉛メッキされた表面は、摩耗にも強く、清掃と検査が容易で、メンテナンスルーチンを合理化します。

なぜ当社のワイヤーロープスリングを選ぶのか?

主な差別化要因は、耐久性に対する当社の総合的なアプローチにあります。他社は外装のみを亜鉛メッキするかもしれませんが、当社は完全な保護を保証します。これは、欧美(ヨーロッパとアメリカ)の厳しい安全規制と、ニュージーランドの変動する気候にとって不可欠です。当社のスリングは、耐用年数が長く、ダウンタイムが短縮されるため、時間の経過とともに優れた価値を提供し、安価な代替品では実現できない総所有コストの優位性をもたらします。

技術パラメータ表:



特徴 仕様
レッグ構成 1、2、3、4本足
材質 高張力鋼線ロープ
保護 溶融亜鉛メッキ(全身)
継手 鍛造合金鋼、グレード100 / G100
使用荷重限界(WLL) 1トンから30トン以上(カスタマイズ可能)
安全率/設計係数 5:1
準拠規格 ASME B30.9、EN13414-1、NZS/AS 2759
一般的な直径 6mmから26mm
温度範囲 -40℃から400℃(短時間)
認証 CE認証済み; 試験証明書あり(COC)

安全性、効率性、耐久性を保証する吊り上げ装置に投資しましょう。物流、倉庫保管、造船、重建設に最適です。今すぐお見積もりをご依頼いただき、必要なレッグ構成とWLLをご指定ください。
