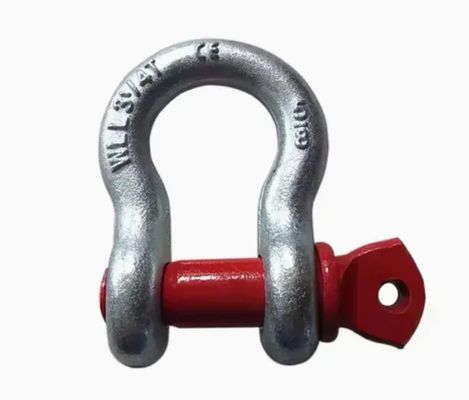

ボルトタイプ オメガアンカー鎖 (0.5-250トンのWLL)

Basic Properties
Place of Origin: 中国
Brand Name: Anfeng / AF
Certification: CE, GS, ISO
Model Number: JB-12 やってくれ0
Trading Properties
Minimum Order Quantity: 500 PC
Price: Call or Email for quote
Payment Terms: T/T、L/C
Supply Ability: 月額10,000個
Product Summary
For the most critical, high-stakes lifting and mooring operations, the standard screw pin shackle is not enough. Introducing the Bolt Type Omega Anchor Shackle, engineered for permanent or semi-permanent applications where supreme security and unparalleled strength are non-negotiable. With a massive Working Load Limit (WLL) range from 0.5 to 250 tons, this shackle is the trusted connection point for heavy industries across New Zealand's ports, Europe's offshore wind farms,

Product Details

Product Name: ねじPinの手錠、タイプJBのアンカー弓手錠
Material: 癒やされ、和らげられる合金鋼ピンが付いている高性能の炭素鋼
Finish: 手錠の弓および塗られた銀をピンで止めるため
WLL: 12トン
Standard: ASME B30.26-2004、RR-C-271D
Type Of Shackle: 弓のシャックル
OEM Or ODM Services: はい、要望に応じて
Packaging: カートン+パレット、木箱、または習慣
Product Description

最も重要な,高リスクの持ち上げと固定作業では,標準のスクリューピン鎖は不十分です. ボルトタイプオメガアンカー鎖を導入し,恒久的または半恒久的な用途のために設計され,最高の安全性と比類のない強度が交渉できない場合労働負荷制限 (WLL) は0.5~250トンで,この鎖は,ニュージーランドの港,ヨーロッパのオフショア風力発電所,北米の大規模なインフラプロジェクト.

恒久 的 な 安全 と 勝手 な 安全 に 備え られ た もの

ボルトタイプ (またはアンカータイプ) のデザインは根本的に異なります.手動で締め付けられるスクリューピンではなく,堅牢なボルト,ナッツ,コッターピン組成を使用し,捕虜,振動防止接続で,事故で切り離すことはできない.

  • コッター・ピン・アンド・カラー・システム: 設計は標準的なボルトを超えて 高耐性鋼ボルト,自己ロック型クラウンナッツ,固定ロック型コッターピンと機械製の安全カラーこの三重組成は,極度の振動や衝撃負荷下でさえもピンがしっかりと位置づけられ,偶然の解体のリスクが効果的に排除されます.

  • オメガ弓設計と最適化されたプロファイル: "オメガ"の名称は,私たちの弓のユニークな,滑らかで連続的な幾何学を反映しています.このプロファイルは,王冠とピン穴のストレスの濃度を最小限に抑えるワイヤロープや合成スリングで使用すると,この鎖の疲労耐久性は最大20%まで増加します.

  • 8級合金鋼から鋳造: 高級の8級 (または同等の800MPa) 合金鋼を使用し,コンピュータ制御された精密な熱処理を受けます.究極の張力強さと衝撃強さの最適なバランスを確保ダイナミックなリフティングと厳しいオフショア環境に適しています

  • 超音波浄化と浸透コーティング: 鋳造の前に,各鎖は,すべての鍛造スケールと汚染物質を除去するために超音波浄化を受けます.熱浸しガルバン化コーティングが完璧に粘着することを保証します腐食が始まる弱点がないため,塩水や腐食性のある環境での使用寿命を大幅に延長します.

オメガ アンカー 鎖 は なぜ 優れている の か

  • 絶対的なピンセキュリティ: 螺栓付き組装は長期,振動,または逆転アプリケーションのための最も安全なオプションで,スクリューピンが簡単にできない心の平和を提供します.

  • 厳しい条件下での使用寿命が延長されます 優れたグレード8の材料,最適化されたオメガ弓設計,そして無欠な腐食保護が組み合わせて,大幅に長い使用寿命を提供します総所有コストを削減する.

  • 高リスク産業のためのグローバルコンプライアンス: EN 13889,ASME B30を含む最も厳格な国際基準を超えて製造される.26海洋利用のためのロイドズ・レジスタで,世界中のプロジェクトサイトで受け入れられるようにします.

テクニカル仕様



パラメータ 仕様
材料 8級/800MPa合金鋼 消し加熱
作業負荷制限 (WLL) 0.5トンから250トン
設計要素 51 最低断裂負荷 (6:1 海洋およびオフショアグレード)
ピンタイプ ボルト,ナッツ,コッターピン組成
終わって ISO 1461 (標準) に準拠した熱浸し加熱;特殊なオフショアコーティング (オプション)
基準 EN 13889,ASME B3026ロイドズ・レジスタ/DNV-GL
識別 深層レーザーで刻まれたWLL,グレード,そしてユニークな追跡コード

適用: 恒久的なリグ・アセンブリ,オフショア・アンローリング,重力リフトクレーン・ブロック,造船,堆積,掘削機器,そして複雑なスリング・コンフィギュレーションにおけるマスター・リンクとして理想的です.

セキュリティのゴールドスタンダードを要求します. あなたの荷重が数百トンで測定されているとき,妥協は選択肢ではありません. 揺るぎない安全のためにボルトタイプオメガアンカー鎖を指定します.

オーダーメイド リフティング ソリューションと認証された技術データシートのために私たちと連絡してください.
